Brand Name : Furious Motor
Model Number : 3650
Certification : CE
Place of Origin : China
MOQ : 10
Price : $22
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability : 3000 pcs / month
Delivery Time : 5 - 8 working days
Packaging Details : Carton with protection (EPE)
Model : 3650
KV : 500 / customized
Max. Torque : 0.7 N.m
Input Voltage : 11 V - 40 V
Suggested Prop : 11 inch - 14 inch
Idle Current : 1.6 A - 2.9 A
Max. Current : 26 A
Max. Thrust : 3600 g
RPM : 18000
Li-Po : 4S - 10S
Dimension : 36 mm * 50 mm
Weight : 186 g
Application : Drone, FPV, racing drone
Introduction

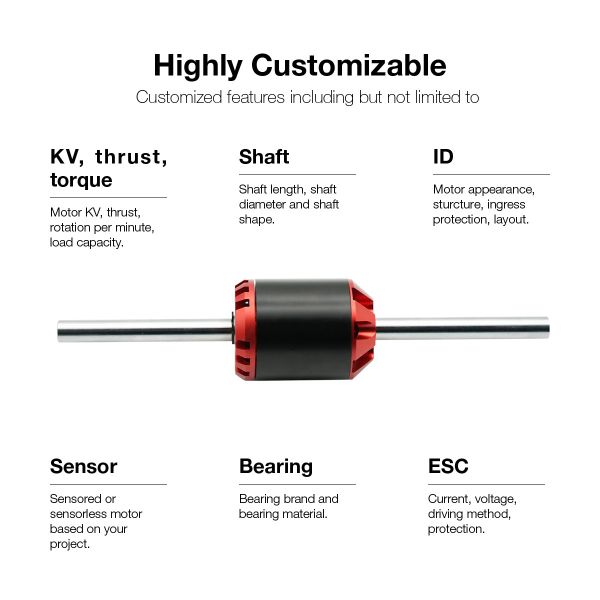

Crafted with superior performance and durability in mind, this 3650 brushless motor features 0.2mm laminations for efficient operation, high-quality bearings for extended life, and meticulously hand-wound, coated wire for smooth power delivery. This combination makes 3650 brushless DC motor and ideal choice for demanding applications in remote control drone, electric tools, and FPV.
Tech Specs
| Model | 3650 |
| Type | Brushless DC motor |
| KV | 500 |
| Suggested ESC | 4 S ~ 10 S |
| Max. Torque | 0.7 N·m |
| Li-Po | 4 S ~ 10 S |
| Max. Voltage | 40 V |
| Max. Current | 26 A |
| Max. Power | 830 W |
| Motor Dimension | 36 mm * 50 mm |
| Max. Thrust | 3600 g |
| Weight | 186 g |
| Application | FPV, racing drone |
Details





3650 Lightweight Brushless DC Motor for RC Racing Drone FPV and Camera Drone
|
|
3650 Lightweight DC Brushless Motor For RC Racing Drone FPV And Camera Drone Images |
